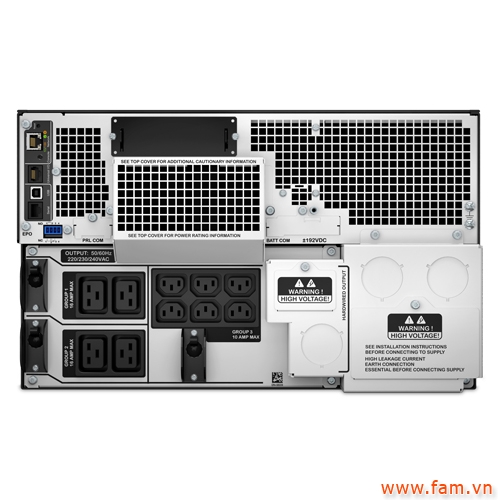

Output power capacity 10.0 KWatts / 10.0 kVA Max Configurable Power (Watts) 10.0 KWatts / 10.0 kVA Nominal Output Voltage 230V Output Voltage Distortion Less than 2% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Load Crest Factor thirty first Topology Double Conversion Online Waveform type Sine wave Output Connections (3) IEC Jumpers (Battery Backup) (6) IEC 320 C13 (Battery Backup) (1) Hard Wire 3-wire (H N + G) (Battery Backup) (4) IEC 320 C19 (Battery Backup) Bypass Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage 230V , 400V 3PH Input frequency 40 - 70 Hz (auto sensing) Input Connections Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) Input voltage range for main operations 160 - 275V Input voltage adjustable range for mains operation 100 - 275 (half load), 173 - 476 (half load)V Other Input Voltages 220, 240, 380, 415
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 1.5hour(s) Replacement Battery APCRBC140 Expected Battery Life (years) 3 - 5 RBC Quantity 2 Extendable Run Time first Extended Run Options APC-Smart-UPS-SRT-10000VA-RM-230V Runtime View Runtime Graph View Runtime Chart Efficiency View Efficiency Graph
Communications & Management
Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB Control panel Multi-function LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Available SmartSlot™ Interface Quantity first
Surge Protection and Filtering
Surge energy rating 480Joules
Physical
Maximum Height 263mm, 26.3CM Maximum Width 432mm, 43.2CM Maximum Depth 715mm, 71.5CM Rack Height 6U Net Weight 111.82KG Shipping weight 130.0KG Shipping Height 461mm , 46.1CM Shipping Width 600mm , 60.0CM Shipping Depth 1000mm , 100.0CM Color Black
Environmental
Operating Temperature 0 - 40 ° C Operating Relative Humidity 0 - 95% non-condensing % Operating Elevation 0-3000meters Storage Temperature -15 - 45 ° C Storage Relative Humidity 0 - 95% non-condensing % Storage Elevation 0-15000meters Audible noise at 1 meter from surface of unit 55.0 dBA Online thermal dissipation 1300.0BTU/hr Protection Class IP 20
Conformance
Approvals CE, CE Mark, EAC, EN / IEC 62040-1, EN / IEC 62040-2, ENERGY STAR V1.0 (EU), IRAM, RCM, VDE Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery
WARRANTY
WARRANTY: 24 tháng TP.Hà Nội: Số 25, ngõ 68 Cầu Giấy (Hotline: 04.73000911) Tp.HCM: 37 Hồ Bá Kiện, Quận 10. TPHCM Tel : +84873000911 Fax :+848 38248 010
Includes: CD with software , Comms cable , Documentation CD , Installation guide , Removable support feet , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
